Rover Vision — Raspberry Pi YOLO + Kinect (Aprendizaje Automático)
Led the rover’s Vision work and built a Raspberry Pi inference stack for a class project: trained lightweight YOLO variants, exported to ONNX/NCNN, streamed Kinect video with live detections, and integrated a ROS2 node for downstream use.
Raspberry PiYOLONCNN/ONNXROS2Kinect
PythonRaspberry PiYOLOv5/YOLOv8NCNNONNXOpenCVFlaskROS2KinectComputer Vision
Outcomes
- Training-to-deployment pipeline: YOLOv5n/YOLOv8n → ONNX → NCNN for Raspberry Pi

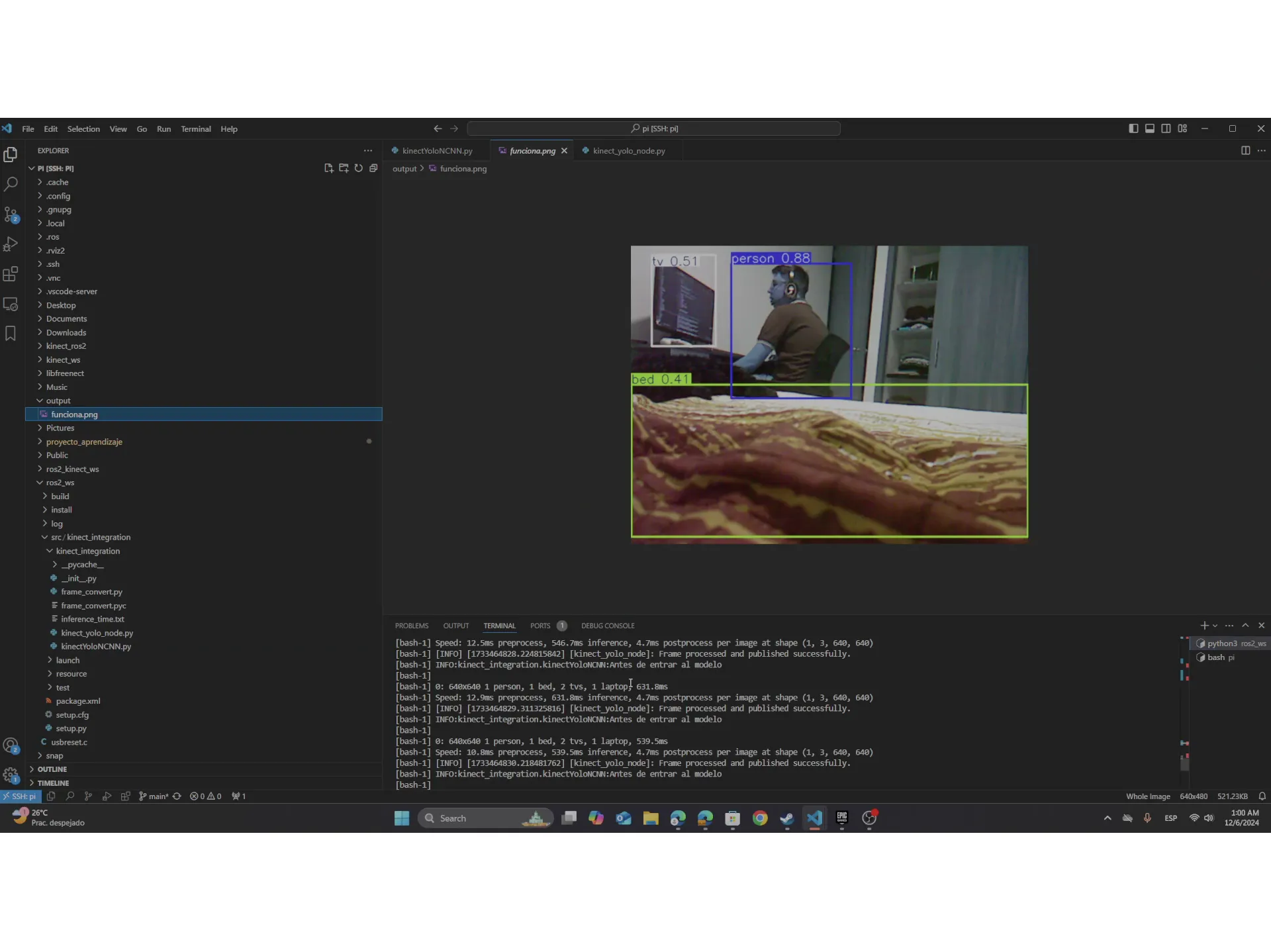

- Live detection server: Kinect RGB → YOLO inference → JPEG stream over Flask
- ROS2 node publishes images/results for other rover nodes
- Compared multiple lightweight models (including NanoDet) for latency/quality trade‑offs
- Later experiments with Hailo inference to push performance further
Context
This project had two lives:
- Rover Vision: I led the vision effort for a university rover team aiming at international competitions. Hardware reality (Raspberry Pi budgets, tight power) meant we needed small models and careful deployment.
- Aprendizaje Automático (course): I turned the stack into a class project using a Kinect camera, showing real‑time inference and a clean path from training to deployment on the Pi.
What I Built
- Lightweight models that run on a Pi: trained YOLOv5n/YOLOv8n and evaluated NanoDet; exported to ONNX and converted to NCNN for fast CPU inference on ARM.
- A streaming inference app: captured Kinect RGB frames, ran YOLO on device, and served annotated frames as a motion‑JPEG stream via Flask, including a tiny endpoint to report the last inference time for quick benchmarking.
- A ROS2 integration: wrapped the pipeline in a ROS2 node that publishes images/results for downstream consumers (navigation, logging, teleop overlays).
- A simple benchmarking loop: saved per‑frame inference times and used them to compare model variants and input resolutions.
How It Works
- Capture: grab RGB from the Kinect on the Pi.
- Infer: run a tiny object detector (YOLOv5n/YOLOv8n exported to NCNN) on the frame.
- Overlay: draw boxes/labels, and write the latest inference time to a lightweight store.
- Serve/Publish: either stream frames over HTTP (Flask) or publish via ROS2 to other nodes.
Notes & Next Steps
- Hailo acceleration: we later experimented with a Hailo module to offload inference and improve FPS. It’s not committed here, but the pipeline was designed to swap inference backends.
- Dataset iteration: for Rover, we focused on practical classes (tools, markers, terrain cues) and on input sizes that preserved throughput on the Pi.
If you want to see the embedded control that this vision work complements, check out the STM32 projects and the mobile robotics page.
