Overview

This track documents my journey building on a STM32F411RE (Cortex‑M4) without vendor codegen: writing drivers from scratch, understanding the MCU at the register level, and delivering working applications under tight memory and timing constraints.

I focused on fundamentals — how computers execute instructions, how memory‑mapped I/O works, and how interrupts and clocks interact — while becoming fluent in C, pointers, and low‑level debugging.

Core Skills Gained

• Computer fundamentals: Von Neumann model, memory‑mapped peripherals, NVIC/interrupts, clock tree, startup/linker basics.
• C mastery: types, pointers to memory‑mapped registers, structs, headers to organize code and place const data in Flash.
• ARM Cortex‑M4 specifics: vector table, SysTick, exception priorities, efficient register bit manipulation.
• Driver work: GPIO, EXTI, timers, ADC + PWM, USART, SPI, I2C, simple PLL and SysTick configuration.
• Display + graphics: ILI9341 initialization, address‑window writes, rectangle fills, font rendering, streaming pixel data.
• Filesystem + storage: integrating FatFs for SD card I/O and planning memory‑safe image rendering.
• Debugging: reading STM32 registers by hand, single‑stepping, logic‑analyzer traces for SPI, validating command/data sequencing.

Key Projects

ProyectoImagenesSD — SD images on ILI9341

Goal: load images from an SD card and render them on an SPI‑connected ILI9341 TFT within tight memory limits.

• Problem: limited SRAM (~128 KB) made full‑frame buffers impractical; also, the display’s command/data protocol is unforgiving.
• Approach: initialized the display, set address windows, and streamed pixels line‑by‑line to avoid large buffers. Integrated FatFs for directory traversal and file reads. Used a logic analyzer to validate SPI polarity/phase and the DC (data/command) pin timing.
• Outcome: stable image rendering and text overlay with no tearing, using constant memory footprints and predictable timing.

ProyectoFinal — Snake + image streaming

Goal: combine a responsive game UI with image streaming to the same display.

• Problem: coordinating input (buttons/joystick), game timing, and display updates caused flicker and missed inputs when naive loops were used.
• Approach: drove the game loop from timers; used EXTI for button edges and ADC/PWM to control speed/inputs; gated screen updates to defined regions using address windows; streamed image bytes over USART into active windows when needed.
• Outcome: smooth movement without tearing, responsive controls, and a menu/UI rendered with simple primitives.

ProyectoFinalEntrega — image pack rendering

Goal: deliver multiple curated images while staying well within SRAM limits.

• Problem: image assets exceeded what was comfortable for RAM and naive buffering.
• Approach: placed assets and rendering routines in Flash (const), and streamed pixels directly into the LCD’s windowed regions. Selected images via a small dispatcher instead of loading large data structures.
• Outcome: deterministic memory use and fast startup, suitable for demos and constrained environments.

Drivers and Peripherals

I wrote and exercised drivers for the core MCU peripherals used across projects:

• GPIO, EXTI, timers, SysTick, PLL for baseline bring‑up and timing
• ADC for sampling joystick/sensors; PWM for refresh and actuator control
• USART for text/binary streaming; SPI for display/SD; I2C for auxiliary devices

Design choices focused on clarity and predictability: explicit init structures, bit‑precise register writes, and simple state machines. Common pitfalls I avoided included misordered clock enables, interrupt priority inversions, and blocking I/O in timing‑critical paths.

Debugging Stories

• Register‑level triage: I tracked down stuck peripherals by reading status/flag bits and confirming clock/reset sequencing, often catching missing enables or wrong modes early.
• Frame‑level analysis: a logic analyzer revealed a subtle DC pin timing issue on SPI; adjusting the command/data toggle fixed blank frames instantly.
• Performance under constraints: I avoided frame‑sized buffers and wrote windowed, tight loops to keep refresh rates smooth and SRAM usage constant.

Transferable Lessons

• Think from the hardware up: read datasheets, design state machines, and prove correctness with instruments.
• Memory‑aware design: place large const assets in Flash, stream in chunks, and be explicit about lifetimes/ownership.
• Strong debugging habits: isolate faults, write minimal repros, and instrument your code and signals.

Teaching (Monitor) — Taller V

For my strong performance, I later served as a course monitor (TA) in Taller V. After that, the professor asked me to help relaunch the Mobile Robotics subject after more than four years without it running — most prior students had already graduated, so there wasn’t much “institutional memory.” I helped bootstrap the robot platform and mentor students through bring‑up and control.

See the follow‑on project for that story: projects/mobile-robotics-stm32-imu-astar.

Notes

• Board: STM32F411RE (Cortex‑M4F). Projects organized under STM32CortexM4ElectronicaDigital/.

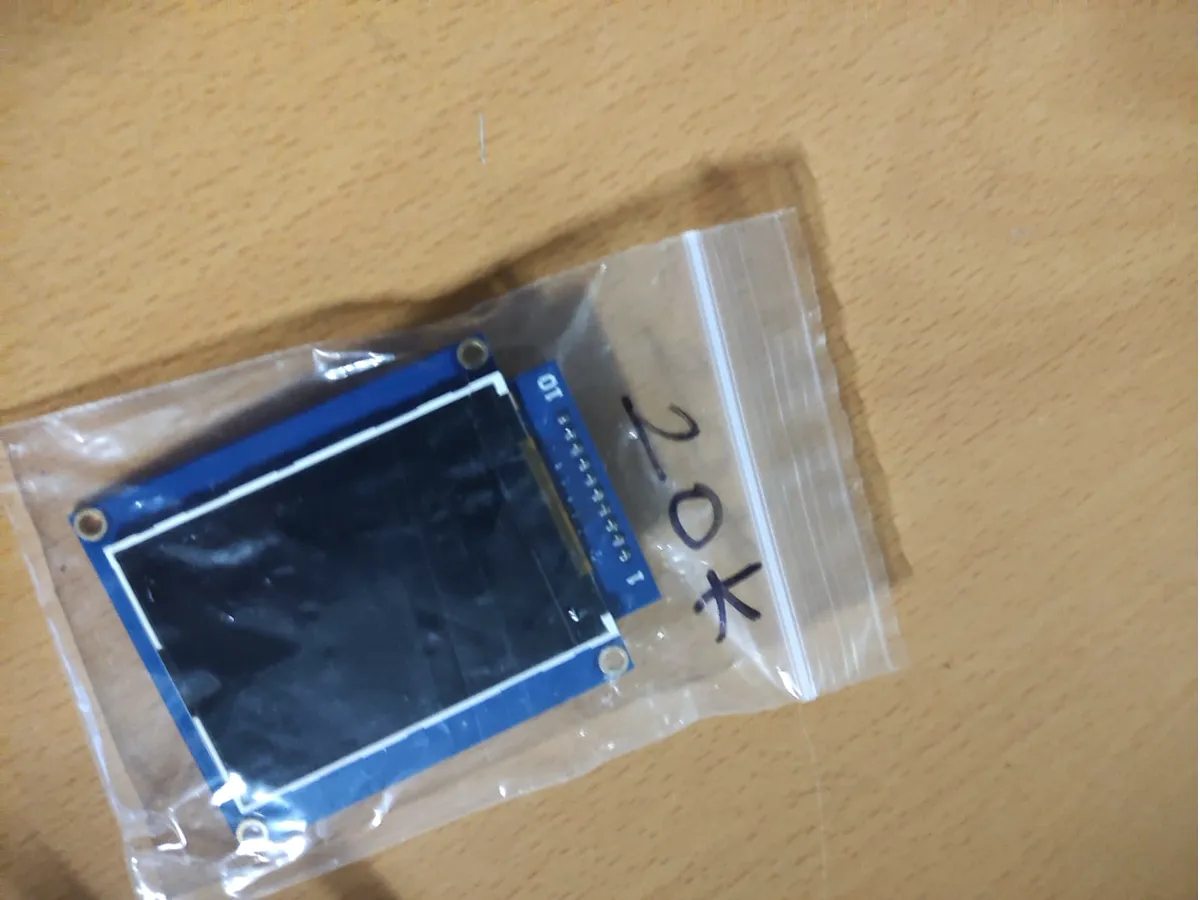

• Display: ILI9341 over SPI with address window writes and font primitives.
• Filesystem: FatFs used for SD card access in the image project.

If you’re interested in deeper implementation details, I’m happy to walk through the driver patterns and display pipeline.
